Dräger dujų matavimo sistema su indikatoriniais vamzdeliais (greitam nustatymui)

Oro mėginių paėmėjai (aspiratoriai):

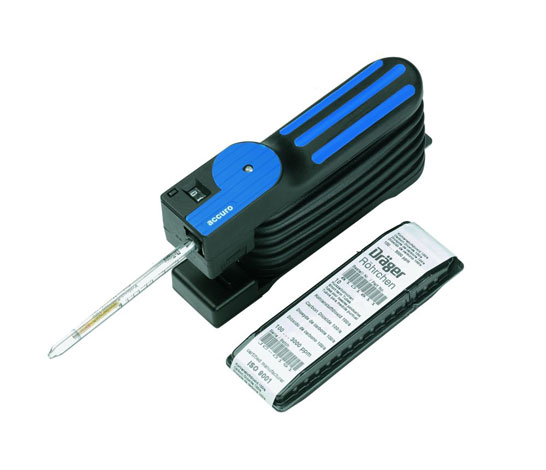

ACCURO dujų aptikimo siurblys (rankinis dumplinis siurblys greitam matavimui)

Panaudojimas:

Oro mėginio paėmimas dirbant su Dräger vamzdeliais
Darbinis tūris: 100 ml ±5%
Ciklų skaitiklis: 0 ÷ 99
Proceso indikatorius: Yra. Parodo, kada galima atlikti sekantį pumpavimo ciklą
Užsakymo kodas:

6400000

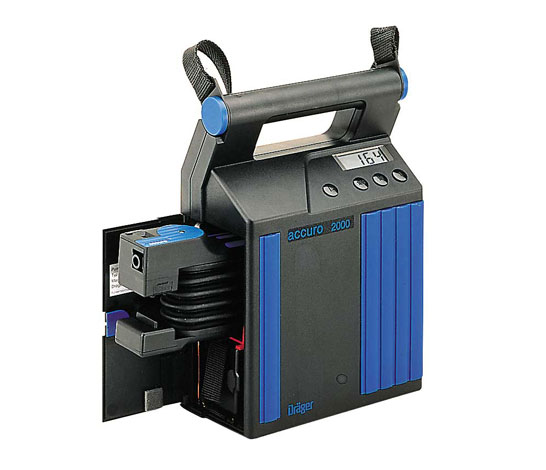

ACCURO 2000 (automatas dumpliniam siurbliui ACCURO)

Panaudojimas:

Automatinis oro mėginio paėmimas dirbant su ACCURO ir Dräger vamzdeliais

Maitinimas:

Pakraunamas akumuliatorius

Valdymas:

Elektroninis su automatine proceso kontrole

Ciklų skaičius:

1 ÷ 199

Užsakymo kodas:

6400200



Vamzdelių sąrašas:



Pavadinimas

Originalus pavadinimas

Užsakymo kodas

Standartinės matavimo ribos
[20 0C, 1013 hPa]

Mat. laikas,
[s arba min]

Acetaldehidas

Acetaldehyde 100/a

67 26 665

100 - 1,000 ppm

 5

Acetonas

Acetone 100/b

CH 22 901

100 - 12,000 ppm

4

Acto rūgštis

Acetic Acid 5/a

67 22 101

5 - 80 ppm

30s

Akrilonitrilas

Acrylonitrile 0.5/a (5)

67 28 591

1 - 20 ppm
0.5 - 10 ppm

24

Akrilonitrilas

Acrylonitrile 5/b

CH 26 901

5 - 30 ppm

30s

Aktyvavimo vamzdelis Formaldehidui (67 33 081)

Activation tube for use in conjunction with Formaldehyde 0.2/a tube

81 01 141





Alkenai (olefinai):
Propenas ir Butenas

Olefine 0.05%/a:

Propylene and Butylene

CH 31 201

0.06 - 3.2 Vol.%
0.04 - 2.4 Vol.%

5

Alkoholiai

Alcohol 25/a

81 01 631

Methanol 25 - 5,000 ppm

i-Propanol 50 - 4,000 ppm

n-Butanol 100 - 5,000 ppm

Ethanol 25 - 2,000 ppm

5

Alkoholiai

Alcohol 100/a

CH 29 701

100 - 3,000 ppm

1.5

Aminų testas

Amine Test

81 01 061

qualitative

5s

Amoniakas

Ammonia 0.25/a

81 01 711

0.25 - 3 ppm

1

Amoniakas

Ammonia 2/a

67 33 231

2 - 30 ppm

1

Amoniakas

Ammonia 5/a

CH 20 501

5 - 70 ppm

1

Amoniakas

Ammonia 5/b

81 01 941

5 - 100 ppm

15s

Amoniakas

Ammonia 0.5%/a

CH 31 901

0.5 - 10 Vol.%

30s

Angliavandeniliai

Hydrocarbons 0.1%/b

CH 26 101

0.1 - 1.3 Vol.%

3

Angliavandenilis Hydrocarbon 2 CH 25 401 3 - 23 mg/L 5

Angliavandenilių halogenidai

Halogenated Hydrocarbons 100/a (8)

81 01 601

100 - 2,600 ppm

1

Anglies disulfidas

Carbon Disulphide 0.04

CH 26 001

3 - 95 ppm

2

Anglies disulfidas

Carbon Disulphide 3/a

81 01 891

3 - 95 ppm

2

Anglies disulfidas

Carbon Disulphide 5/a

67 28 351

5 - 60 ppm

3

Anglies disulfidas

Carbon Disulphide 30/a

CH 23 201

0.1 - 10 mg/L

1

Anglies dvideginis

Carbon Dioxide 100/a

81 01 811

100 - 3,000 ppm

4

Anglies dvideginis

Carbon Dioxide 0.01%/a

CH 30 801

0.01 - 0.3 Vol.%

4

Anglies dvideginis

Carbon Dioxide 0.1%/a

CH 23 501

0.5 - 6 Vol.%
0.1 - 1.2 Vol.%

30s
2.5

Anglies dvideginis

Carbon Dioxide 0.5%/a

CH 31401

0.5 - 10 Vol.%

30s

Anglies dvideginis

Carbon Dioxide 1%/a

CH 25 101

1 - 20 Vol.%

30s

Anglies dvideginis

Carbon Dioxide 5%/A

CH 20 301

5 - 60 Vol.%

2

Anglies monoksidas (smalkės)

Carbon Monoxide 2/a

67 33 051

2 - 60 ppm

4

Anglies monoksidas (smalkės)

Carbon Monoxide 5/c

CH 25 601

100 - 700 ppm
5 - 150 ppm

50s
4

Anglies monoksidas (smalkės)

Carbon Monoxide 8/a

CH 19 701

8 - 150 ppm

2

Anglies monoksidas (smalkės)

Carbon Monoxide 10/b

CH 20 601

100 - 3,000 ppm
10 - 300 ppm

20s
3.5

Anglies monoksidas (smalkės)

Carbon Monoxide 10/c

81 01 951

10 - 250 ppm

1

Anglies monoksidas (smalkės)

Carbon Monoxide 0.001%/a

67 28 751

0.01 - 0.3 Vol.%
0.001 - 0.03 Vol.%

20s
3.5

Anglies monoksidas (smalkės)

Carbon Monoxide 0.3%/b

CH 29 901

0.3 - 7 Vol.-%

30s

Anglies monoksidas ir dioksidas,
kombinuotas vamzdelis

Simultaneous Tube

Carbon Monoxide 200/a +Carbon Dioxide 2%/a

67 18 301

 200 - 2,500 ppm CO2 - 12 Vol.% CO2

1.5

Anglies tetrachloridas

Carbon Tetrachloride 0.2/a (5)

81 01 481

0.2 - 1 ppm

6

Anglies tetrachloridas

Carbon Tetrachloride 0.2/b

81 01 791

0.2 - 10 ppm
10 - 70 ppm

51

Anglies tetrachloridas

Carbon Tetrachloride 1/a (5)

81 01 021

1 - 15 ppm

6

Anglies tetrachloridas

Carbon Tetrachloride 5/c

CH 27 401

5 - 50 ppm

3

Anilinas

Aniline 0.5/a

67 33 171

0.5 - 10 ppm

4

Anilinas

Aniline 5/a

CH 20 401

1 - 20 ppm

3

Arseno organiniai junginiai

Organic Arsenic Comp. and Arsine

CH 26 303

0.3 mg/m3 as AsH3

3

Arseno trioksidas

Arsenic Trioxide 0.2/a

67 28 951

0.2 mg/m3 as As

20

Arsinas

Arsine 0.05/a

CH 25 001

0.05 - 3 ppm

6

Azoto dioksidas

Nitrogen Dioxide 0.5/c

CH 30 001

5 - 25 ppm
0.5 - 10 ppm

15s
 40s

Azoto dioksidas

Nitrogen Dioxide 2/c

67 191 01

5 - 100 ppm
2 - 50 ppm

1
2

Azoto oksidai

Nitrous Fumes 0.5/a

CH 29 401

0.5 - 10 ppm

40 s

Azoto oksidai

Nitrous Fumes 2/a

CH 31 001

5 - 100 ppm
 2 - 50 ppm

1
2

Azoto oksidai

Nitrous Fumes 20/a

67 24 001

20 - 500 ppm

30 s

Azoto oksidai

Nitrous Fumes 50/a

81 01 921

250 - 2,000 ppm
50 - 1,000 ppm

30s
1

Azoto oksidai

Nitrous Fumes 100/c

CH 27 701

500 - 5,000 ppm
100 - 1,000 ppm

1.5
1.5

Azoto rūgštis

Nitric Acid 1/a

67 28 311

5 - 50 ppm
 1 - 15 ppm

2
 4

Benzenas

Benzene 0.5/a

67 28 561

0.5 - 10 ppm

15

Benzenas

Benzene 0.5/c (5)

81 01 841

0.5 - 10 ppm

20

Benzenas

Benzene 2/a (5)

81 01 231

2 - 60 ppm

8

Benzenas

Benzene 5/a

67 18 801

5 - 40 ppm

3

Benzenas

Benzene 5/b

67 28 071

5 - 50 ppm

8

Benzenas

Benzene 15/a

81 01 741

15 - 420 ppm

4

Benzino angliavandeniliai

Petroleum Hydrocarbons 10/a

81 01 691

10 - 300 ppm

1

Benzino angliavandeniliai

Petroleum Hydrocarbons 100/a

67 30 201

100 - 2,500 ppm

30s

Chloras

Chlorine 0.2/a

CH 24 301

0.2 - 3 ppm

3

Chloras

Chlorine 0.3/b

67 28 411

0.3 - 5 ppm

8

Chloras

Chlorine 50/a

CH 20 701

50 - 500 ppm

20s

Chlorbenzenas

Chlorobenzene 5/a (5)

67 28 761

5 - 200 ppm

3

Chloroformas

Chloroform 2/a (5)

67 28 861

2 - 10 ppm

7

Chloroformatai

Chloroformates 0.2/b

67 18 601

0.2 - 10 ppm

3

Chloroprenas

Chloroprene 5/a

67 18 901

5 - 60 ppm

3

Chromo rūgštis

Chromic Acid 0.1/a (9)

67 28 681

0.1 - 0.5 mg/m3

8

Cianidas

Cyanide 2/a

67 28 791

2 - 15 mg/m3

2.5

Cianochloridas

Cyanogen Chloride 0.25/a

CH 19 801

0.25 - 5 ppm

5

Cikloheksanas

Cyclohexane 100/a

67 25 201

100 - 1,500 ppm

5

Cikloheksilaminas

Cyclohexylamine 2/a

67 28 931

2 - 30 ppm

4

Deguonis

Oxygen 5%/B (8)

67 28 081

5 - 23 Vol.%

1

Deguonis

Oxygen 5%/C

81 03 261

5 - 23 Vol.%

1

Dichlormetanas

Methylene Chloride 100/a

67 24 601

100 - 2,000 ppm

3

Dietilo eteris

Diethyl Ether 100/a

67 30 501

100 - 4,000 ppm

3

Dimetilo formamidas

Dimethyl Formamide 10/b

67 18 501

10 - 40 ppm

3

Dimetilo sulfatas

Dimethyl Sulphate 0.005/c (9)

67 18 701

0.005 - 0.05 ppm

50

Dimetilo sulfatas

Dimethyl Sulphide 1/a (5)

67 28 451

1 - 15 ppm

15

Druskos ir azoto rūgštys

Hydrochloric Acid / Nitric Acid 1/aHydrochloric Acid + Nitric Acid

81 01 681

1 - 10 ppm (HCl)
1 - 15 ppm (HNO3)

1.5
3

Druskos rūgštis

Hydrochloric Acid 1/a

CH 29 501

1 - 10 ppm

2

Druskos rūgštis

Hydrochloric Acid 50/a

67 28 181

500 - 5,000 ppm
50 - 500 ppm

30s
4

Epichlorhidrinas

Epichlorohydrin 5/b

67 28 111

5 - 50 ppm

8

Etilacetatas

Ethyl Acetate 200/a

CH 20 201

200 - 3,000 ppm

5

Etilbenzenas

Ethyl Benzene 30/a

67 28 381

30 - 400 ppm

2

Etilenas

Ethylene 0.1/a (5)

81 01 331

0.2 - 5 ppm

30

Etilenas

Ethylene 50/a

67 28 051

50 - 2,500 ppm

4

Etilenglikolis

Ethylene Glycol 10 (5)

81 01 351

10 - 180 mg/m3

3

Etilenoksidas

Ethylene Oxide 1/a (5)

67 28 961

1 - 15 ppm

8

Etilenoksidas

Ethylene Oxide 25/a

67 28 241

25 - 500 ppm

6

Etilglikolio acetatas

Ethyl Glycol Acetate 50/a

67 26 801

50 - 700 ppm

3

Fenolis

Phenol 1/b

81 01 641

1 - 20 ppm

5

Fluoras

Fluorine 0.1/a

81 01 491

0.1 - 2 ppm

5

Fluoro rūgštis

Hydrogen Fluoride 0.5/a

81 03 251

0.5 - 15 ppm
10 - 90 ppm

250s

Fluoro rūgštis

Hydrogen Fluoride 1.5/b

CH 30 301

1.5 - 15 ppm

2

Formaldehidas

Formaldehyde 0.2/a

67 33 081

0.5 - 5 ppm
0.2 - 2.5 ppm

1.5
3

Aktyvavimo vamzdelis Formaldehidui (67 33 081) - būtinas

Activation tube for use in conjunction with Formaldehyde 0.2/a tube

81 01 141





Formaldehidas

Formaldehyde 2/a

81 01 751

2 - 40 ppm

30s

Fosfinas

Phosphine 0.01/a

81 01 611

0.1 - 1 ppm
0.01 - 0.3 ppm

2.5
8

Fosfinas

Phosphine 0.1/a

CH 31 101

0.1 - 4 ppm

6

Fosfinas

Phosphine 1/a

81 01 801

20 - 100 ppm
1 - 20 ppm

210

Fosfinas

Phosphine 25/a

81 01 621

200 - 10,000 ppm
25 - 900 ppm

1.5
13

Fosfinas

Phosphine 50/a

CH 21 201

50 - 1,000 ppm

2

Fosforo rūgšties esteriai

Phosphoric Acid Esters 0.05/a

67 28 461

0.05 ppm Dichlorvos

5

Fosgenas

Phosgene 0.02/a

81 01 521

0.02 - 1 ppm
0.02 - 0.6 ppm

6
12

Fosgenas

Phosgene 0.05/a

CH 19 401

0.04 - 2.5 ppm

11

Fosgenas

Phosgene 0.25/c

CH 28 301

0.25 - 15 ppm

1

Gamtinių dujų odorantas, tertbutilmerkaptanas (TBM)

Natural Gas Odorization,Tertiary Butylmercaptan

81 03 071

3 - 15 mg/m3
1 - 10 mg/m3

3
5

Gamtinių dujų testas

Natural Gas Test (5)

CH 20 001

qualitative

40s

Gyvsidabrio garai

Mercury Vapour 0.1/b

CH 23 101

0.05 - 2 mg/m3

10

Heksanas

Hexane 100/a

67 28 391

100 - 3,000 ppm

3

Hidrazinas

Hydrazine 0.2/a

67 33 121

0.5 - 10 ppm
0.2 - 5 ppm

3
6

Hidrazinas

Hydrazine 0.25/a

CH 31 801

0.25 - 3 ppm

1

Hidrociano rūgštis

Hydrocyanic Acid 2/a

CH 25 701

2 - 30 ppm

1

Kombinuotas testas I,Neorganiniai dūmai/garai

Simultaneous Test-Set I Inorganic Fumes

81 01 735

40s

Kombinuotas testas II,Neorganiniai dūmai/garai

Simultaneous Test-Set II Inorganic Fumes

81 01 736

40s

Kombinuotas testas III,Organiniai dūmai/garai

Simultaneous Test-Set II IOrganic Fumes

81 01 770

2

Ksilenas

Xylene 10/a

67 33 161

10 - 400 ppm

1

Merkaptanas

Mercaptan 0.1a

81 03 280

0.05 - 15 ppm

5

Merkaptanas

Mercaptan 0.5/a

67 28 981

0.5 - 5 ppm

5

Merkaptanas

Mercaptan 20/a

81 01 871

20 - 100 ppm

6

Metilakrilatas

Methyl Acrylate 5/a

67 28 161

5 - 200 ppm

5

Metilbromidas

Methyl Bromide 0.5/a

81 01 671

5 - 30 ppm
0.5 - 5 ppm

2
5

Metilbromidas

Methyl Bromide 3/a (5)

67 28 211

10 - 100 ppm
 3 - 35 ppm

1
 3

Metilbromidas

Methyl Bromide 5/b

CH 27 301

5 - 50 ppm

1

Nikelio tetrakarbosilas

Nickel Tetracarbonyl 0.1/a (9)

CH 19 501

0.1 - 1 ppm

5

Nikelis

Nickel 0.25/A

67 28 871

0.25 - 1 mg/m3

25

Nitroglikolis

Nitroglycol 0.25/a

67 18 201

0.25 ppm

3

Organinės azoto bazės

Organic Basic Nitrogen Compounds

CH 25 903

1mg/m3 threshold value

1.5

oToluidinas

o-Toluidine 1/a

67 28 991

1 - 30 ppm

4

Ozonas

Ozone 0.05/b

67 33 181

0.05 - 0.7 ppm

3

Ozonas

Ozone 10/a

CH 21 001

10 - 300 ppm

20 s

Pentanas

Pentane 100/a

67 24 701

100 - 1,500 ppm

3

Perchloroetilenas

Perchloroethylene 0.1/a

81 01 551

0.5 - 4 ppm
 0.1 - 1 ppm

3
9

Perchloroetilenas

Perchloroethylene 2/a

81 01 501

20 - 300 ppm
2 - 40 ppm

30s
 3

Perchloroetilenas

Perchloroethylene 10/b

CH 30 701

10 - 500 ppm

40 s

Perchloroetilenas

Perchloroethylene 50/A

81 01 851

500 - 10,000 ppm
50 - 6,000 ppm

1
2

Piridinas

Pyridine 5/A

67 28 651

5 ppm

20

Politestas (lengvai oksiduojančių medž.)

Polytest

CH 28 401

qualitative

1.5

Rūgščių testas

Acid Test

81 01 121

qualitative

3s

Sieros dioksidas

Sulphur Dioxide 0.1/a

67 27 101

0.1 - 3 ppm

20

Sieros dioksidas

Sulphur Dioxide 0.5/a

67 284 91

1 - 25 ppm
 0.5 - 5 ppm

3
 6

Sieros dioksidas

Sulphur Dioxide 1/a

CH 31 701

1 - 25 ppm

3

Sieros dioksidas

Sulphur Dioxide 20/a

CH 24 201

20 - 200 ppm

3

Sieros dioksidas

Sulphur Dioxide 50/b

81 01 531

400 - 8000 ppm
50 - 500 ppm

15s
3

Sieros rūgštis

Sulphuric Acid 1/a (9)

67 28 781

1 - 5 mg/m3

75

Skruzdžių rūgštis

Formic Acid 1/a

67 22 701

1 - 15 ppm

3

Stirenas

Styrene 10/a

67 23 301

10 - 200 ppm

3

Stirenas

Styrene 10/b

67 33 141

10 - 250 ppm

3

Stirenas

Styrene 50/a

CH 27 601

50 - 400 ppm

2

Tepalai

Oil 10/a-P

67 28 371

2.5 - 10 mg/m3

25

Tepalų rūkas (aerozolis)

Oil Mist 1/a

67 33 031

1 - 10 mg/m3

25

Tertbutilmerkaptanas (TBM), gamtinių dujų odorantas

Tertiary Butylmercaptan,Natural Gas Odorization

81 03 071

3 - 15 mg/m3
1 - 10 mg/m3

3
5

Tetrahidrotiofenas

Tetrahydrothiophene 1/b (5)

81 01 341

1 - 10 ppm

10

Tioeteris (org. sulfidai)

Thioether

CH 25 803

1 mg/m3

1.5

Toluenas

BTX (-luene 5/b)

81 01 661

50-300 ppm
5-80 ppm

1
5

Toluenas

Toluene 5/a

CH 23 001

50 - 400 ppm

1.5

Toluenas

Toluene 5/b

81 01 661

50 - 300 ppm
5 - 80 ppm

15

Toluenas

Toluene 50/a

81 01 701

50 - 400 ppm

1.5

Toluenas

Toluene 100/a

81 01 731

100 - 1800 ppm

1.5

Tolueno diizocianatas

Toluene Diisocyanate 0.02/A(9)

67 24 501

0.02 - 0.2 ppm

20

Trichloretanas

Trichloroethane 50/d (5)

CH 21 101

50 - 600 ppm

2

Trichloretilenas

Trichloroethylene 2/a

67 28 541

20 - 250 ppm
2 - 50 ppm

1.5
2.5

Trichloretilenas

Trichloroethylene 10/a

CH 24 401

50 - 500 ppm

1.5

Trichloretilenas

Trichloroethylene 50/a

81 018 81

50 - 500 ppm

1.5

Trietilaminas

Triethylamine 5/a

67 18 401

5 - 60 ppm

2

Vandenilio peroksidas

Hydrogen Peroxide 0.1/a

81 01 041

0.1 - 3 ppm

3

Vandenilio sulfidas

Hydrogen Sulphide 0.2/a

81 01461

0.2 - 5 ppm

5

Vandenilio sulfidas

Hydrogen Sulphide 0.2/b

81 01 991

0.2 - 6 ppm

1

Vandenilio sulfidas

Hydrogen Sulphide 0.5/a

67 28 041

0.5 - 15 ppm

6

Vandenilio sulfidas

Hydrogen Sulphide 1/c

67 19 001

10 - 200 ppm
1 - 20 ppm

20s
 3.5

Vandenilio sulfidas

Hydrogen Sulphide 1/d

81 01 831

10 - 200 ppm
1 - 20 ppm

1
10

Vandenilio sulfidas

Hydrogen Sulphide 2/a

67 28 821

20 - 200 ppm
2 - 20 ppm

20s
3.5

Vandenilio sulfidas

Hydrogen Sulphide 2/b

81 01 961

2 - 60 ppm

30s

Vandenilio sulfidas

Hydrogen Sulphide 5/b

CH 29 801

5 - 60 ppm

4

Vandenilio sulfidas

Hydrogen Sulphide 100/a

CH 29 101

100 - 2,000 ppm

30s

Vandenilio sulfidas

Hydrogen Sulphide 0.2%/A

CH 28 101

0.2 - 7 Vol.%

2

Vandenilio sulfidas

Hydrogen Sulphide 2%/a

81 01 211

2 - 40 Vol.%

30s

Vandenilio sulfidas ir sieros dioksidas,
 kombin. vamzdelis

Simultaneous Tube

Hydrogen Sulphide + Sulphur Dioxide 0.2%/A

CH 28 201

0.2 - 7 Vol.%

2

Vandenilis

Hydrogen 0.2%/a

81 01 511

0.2 - 2.0 Vol.%

1

Vandenilis

Hydrogen 0.5%/a

CH 30 901

0.5 - 3.0 Vol.%

1

Vandens garai

Water Vapour 0.1/a

81 01 321

0.1 - 1.0 mg/L

1.5

Vandens garai

Water Vapour 1/a

81 01 081

1 - 18 mg/L

30s

Vandens garai

Water Vapour 1/b

81 01 781

20 - 40 mg/L
1 - 15 mg/L

20s
40s

Vandens garai

Water Vapour 0.1

CH 23 401

1 - 40 mg/L

2

Vandens garai

Water Vapour 3/a

81 03 031

3 - 60 lbs/mmcf

1.5

Vandens garai

Water Vapour 50/a

81 03 021

50 -1000 lbs/mmcf

40s

Vinilchloridas

Vinyl Chloride 0.5/b

81 01 721

5 - 30 ppm
0.5 - 5 ppm

30s
3

Vinilchloridas

Vinyl Chloride 1/a

67 28 031

5 - 50 ppm
1 - 10 ppm

28

Vinilchloridas

Vinyl Chloride 100/a

CH 19 601

100 - 3000 ppm

4



Plačau (pdf)
Copyright (c) Avsista. Visos teisės saugomos
Registruotis
Paslaugos

Sieros rūgštis an.gr. min. 95% iš sandėlio
